DANDE Telemetry 30-09-2013 09:12 – 09: 15 UTC.

This morning my first try to decode the telemetry data from the new satellite DANDE. I could decode in total 12 frames during this short pass.

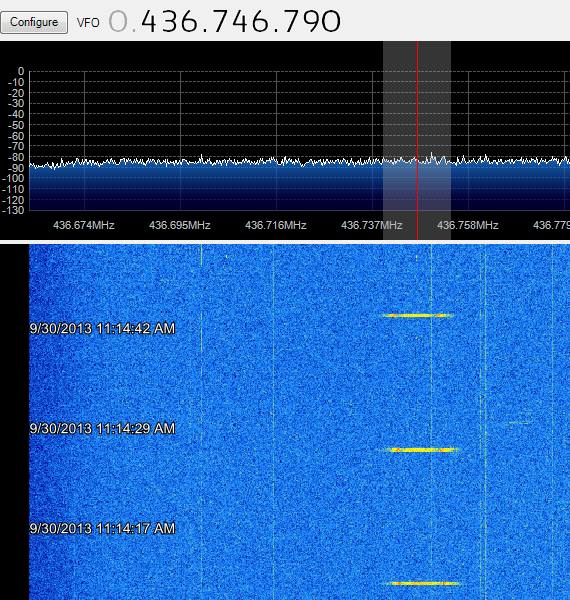

DANDE TLM 30-09-2013 09:12UTC

[136 Bytes KISS Frame (without CRC)]
   1 > C0 00 88 82 9C 88 8A 40 62 88 82 9C 88 8A 40 65 03 3A 64 61
  21 > 6E 64 65 63 6F 73 67 63 00 00 EC 98 00 01 00 00 00 00 00 00
  41 > 00 00 05 F7 00 04 00 00 D0 02 00 00 00 00 00 FF 02 01 82 01
  61 > 08 00 00 01 9F 00 58 00 FC 00 F5 00 EC 01 17 01 0A 28 00 00
  81 > 01 0F F3 00 24 0D 7E 0B F0 0E E2 06 CF 06 1F 06 1F 05 EF 00
 101 > 01 05 C8 09 B1 3B 9A 3B 9A 0E 3A 00 00 00 00 64 61 6E 64 65
 121 > 2E 63 6F 6C 6F 72 61 64 6F 2E 65 64 75 48 E6 C0
À.ˆ‚œˆŠ@bˆ‚œˆŠ@e.:dandecosgc..ì˜...........÷....Ð......ÿ..‚.....Ÿ.X.
ü.õ.ì....(....ó.$.~.ð.â.Ï.....ï...È.±;š;š.:....dande.colorado.eduHæÀ

[30 Bytes TIME Frame]
   1 > C0 09 32 30 31 33 2D 30 39 2D 33 30 20 30 39 3A 31 31 3A 35
  21 > 36 2E 37 34 30 20 55 54 43 C0
À.2013-09-30 09:11:56.740 UTCÀ

[136 Bytes KISS Frame (without CRC)]
   1 > C0 00 88 82 9C 88 8A 40 62 88 82 9C 88 8A 40 65 03 3A 64 61
  21 > 6E 64 65 63 6F 73 67 63 00 00 EC CB 00 01 00 00 00 00 00 00
  41 > 00 00 05 F7 00 04 00 00 D0 02 00 00 00 00 00 FF 02 01 81 01
  61 > 08 00 00 01 AB 00 58 00 FC 00 F5 00 EC 01 17 01 0A 28 00 00
  81 > 01 0F F3 00 24 0D 7E 0B F0 0E E2 06 D5 06 1E 06 1D 05 EF 00
 101 > 01 05 C8 09 B1 3B 9A 3B 9A 0E 3A 00 00 00 00 64 61 6E 64 65
 121 > 2E 63 6F 6C 6F 72 61 64 6F 2E 65 64 75 34 CA C0
À.ˆ‚œˆŠ@bˆ‚œˆŠ@e.:dandecosgc..ìË...........÷....Ð......ÿ.......«.X.\
ü.õ.ì....(....ó.$.~.ð.â.Õ.....ï...È.±;š;š.:....dande.colorado.edu4ÊÀ

Received data can be downloaded at the following location: DANDE Download location

DANDE was launched with the Falcon 9 from SpaceX’s pad at Vandenberg carrying Canada’s CASSIOPE satellite.

Falcon-9 Launch 29-09-2013
