DUCHIFAT-1

Duchifat-1

Mission

Duchifat-1 is an experimental and educational spacecraft developed and built by young Israeli students at the Space Laboratory of the Herzliya Science Centre (HSC).

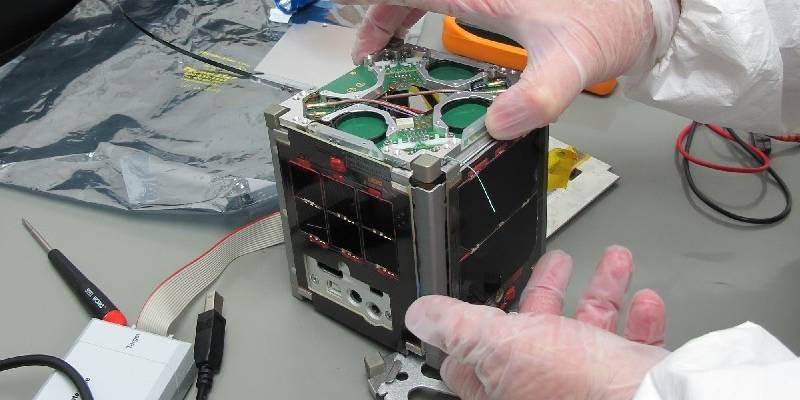

lab-duchifat-1-satellite

Orbital parameters

NAME                    DUCHIFAT-1
NORAD                   40021
COSPAR designator       2014-033-M
Inclination             97.975
RA of A. Node           132.455
Eccentricity            0.0016067
Argument of Perigee     74.596
Revs per day            14.85496918
Period                  1h 36m 56s (96.93 min)
Semi-major axis         6 990 km
Perigee x Apogee        601 x 623 km
BStar (drag term)       0.000171540 1/ER
Mean anomaly            285.708

Downlink

145.980 MHz USB 1k2 BPSK, CW

Status

Active

Telemetry

2015-05-16 10:39:37.410 UTC: from 4X4HSL to GS via x
1>  00 8E A6 40 40 40 40 00 68 B0 68 90 A6 98 00 03 F0 03 80 80 020
21> 45 02 64 39 13 48 4E 00 0A B0 B0 E9 0D 3E AC 7A EB E8 00

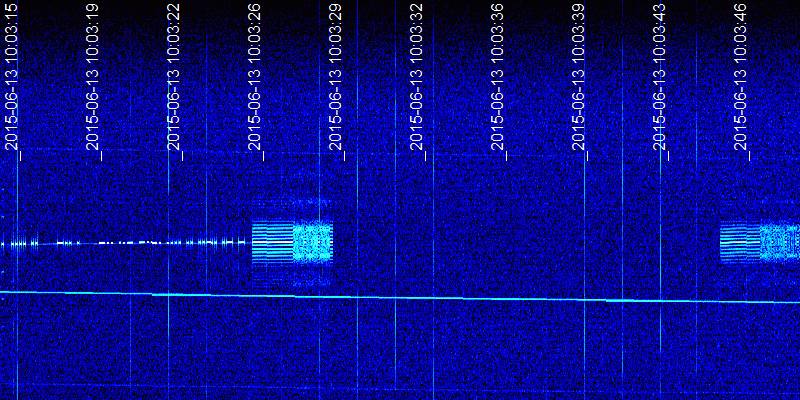

Spectrum by DK3WN
duchifat_cw-bpsk

QSL Received

Duchifat-1-qsl-1

Duchifat-1-qsl-2


duchifat-1-mission-patchHomepage and other references:

The HSL (Herzliya Science Laboratory) main website.
