OOREOS

O/OREOS

Organism/ORganic Exposure to Orbital Stress

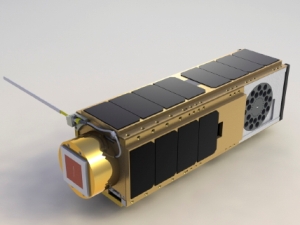

O/OREOS ModelThe overall goal of the O/OREOS mission is to demonstrate the capability to do low-cost science experiments on autonomous Nano satellites in space in support of the Astrobiology Small Payloads program under the Planetary Science Division of the Science Mission Directorate at NASA’s Headquarters. NASA’s Ames Small Spacecraft Division manages the O/OREOS mission while all operations will be conducted by staff and students from the Robotic Systems Laboratory at Santa Clara University. Scientists will apply the knowledge they gain while investigating the space environment and studying how exposure to space changes biology to help to answer Astrobiology’s fundamental questions on the origin, evolution, and distribution of life.

Launched as part of the STP-S26 mission on Nov 20th, 01:24 UTC from Kodiak, Alaska on board a Minotaur IV rocket. All satellites are placed into a 650 km altitude, 72 degree inclination circular orbit.

Orbital parameters

Name                 OOREOS
NORAD                37224
COSPAR designation   2010-062-C
Inclination (degree) 71.973
RAAN                 77.712
Eccentricity         0.0021502
ARGP                 260.695
Orbit per day        14.76865884
Period               1h 37m 30s (97.50 Min)
Semi-major axis      7 017 km
Perigee x apogee     624 x 654 km
Mean Anomaly         99.178

Beacon

437.305 MHz 1k2 AFSK, FM

Call

KF6JBP

TLE data (21-12-2013)

OOREOS
1 37224U 10062C   13354.41440769 +.00002212 +00000-0 +30533-3 0 03198
2 37224 071.9709 172.1529 0017959 008.4067 351.7393 14.79082991056514

Status

Active

Telemetry

The data portion of a standard AX.25 packet is 64 bytes long, although only the first 62 bytes are considered for the O/OREOS packet. The beacon packet contains only standard ASCII characters. Each character represents a HEX value. Below is an example of the 64-byte long raw data:

KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 1330AE010F009D015C5601A3010000CF090D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 1730AE02030190011F5400A301530B9A000D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 1D30AE030E028B0100330032022C0054050D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 2230AE001500AF011A5A01BE02000286010D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 2730AE01CB019E015C57010A000000CF090D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 3B30AE018301A1015C5801A3010000CF090D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 5430AE021D0197011F5400A301530B9A000D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 5930AE039101900100A30132022C0054050D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 5D30AE000500B4011B5C01B702000286010D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 6330AE011E02A3015C5A01A3010000CF090D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 6830AE0233019B011F5400A301530B9A000D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 6D30AE031500920100A30132022C0054050D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 7230AE004801B2011B5C01B902000286010D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 7730AE01C900A6015C5B0133000000CF090D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 7C30AE020D009D011F0100A301530B9A000D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 8030AE03E2029201000A0032022C0054050D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 8F30AE02A0029C011F0000A301530B9A000D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 9430AE033D00970100A30132022C0054050D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 9A30AE000000B8011B5D01B802000286010D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org A930AE030000980100A30132022C0054050D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org AE30AE007B01B6011B5E01B802000286010D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org B230AE013200AB015C5E01A3010000CF090D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org B830AE020600A2011F5400A301540B9A000D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org BD30AE032003980100A30132022C0054050D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org D630AE000000BC011A5F01C202000286010D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org DA30AE01FB02AD015C60010A000400CF090D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org E030AE020800A7011F0500A301540B9A000D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org E530AE0300009E0100020032022C0054050D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org EA30AE004701BA011A5F01BB02000286010D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 1131AE000000C1011B6001B902000286010D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 1731AE014A02B1015C6401A3010300CF090D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 1C31AE025C01AB011F5400A301540B9A000D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 4931AE03E802A60100A30132022C0054050D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 4E31AE000000C7011B6201BC02000286010D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 5331AE011600B6015C6701A3010200CF090D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 5831AE023703AF011F5400A301540B9A000D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 5D31AE030100A90100A30132022C0054050D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org 6231AE000000C3011B6201BB02000286010D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org A331AE013801BC015C6C01A3010000CF090D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org A731AE02BE02B6011F5400A301540B9A000D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org AD31AE030000AF0100A30132022C0054050D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org B231AE000400C7011B6501B902000286010D5F094300204B46
KF6JBP/TELEM>UNDEF>UI,C,F0:OOREOS.org D531AE03D702AD0100A30132022C0054050D5F094300204B46

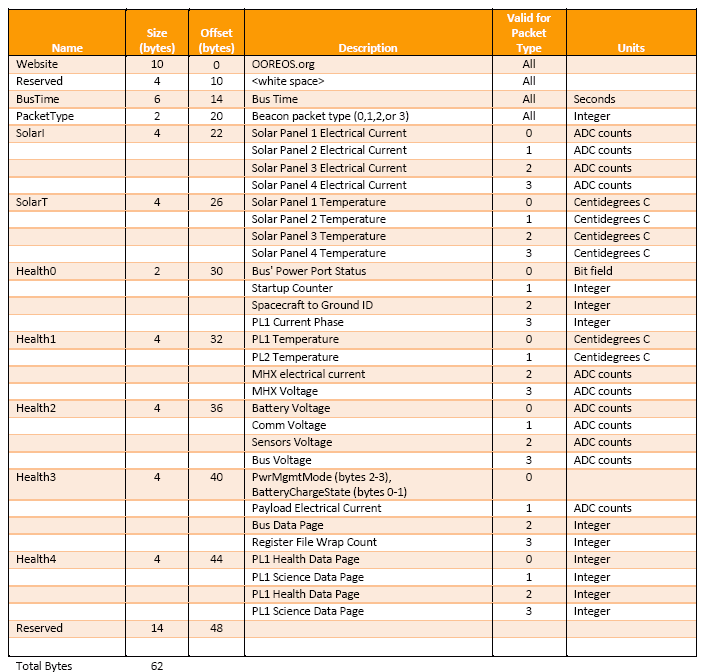

O/OREOS Telemetry

Battery Charge State

0 = Not full, Charging
1 = Full, Not Charging
2 = Discharging, Vbatt > 7.5V
3 = Discharging, Vbatt 7.5 - 7.3V
4 = Discharging, Vbatt < 7.3V

If the battery state is full, not charging, a pin will be activated to let the payload know the battery is at full charge.

Power Management Mode

0: Disabled (uHard on 100%)
1: Duty cycle for SEU protection
2: Relative time mode
3. Absolute time mode

Homepage and other references:

O/OREOS Dashboard
