Phonesat Telemetry received

Phonesat modelPhonesat Telemetry Received
April 22, 2013 13:20 UTC

Radio settings:

  • Call sign: KJ6KRW
  • Frequency: 437.425 MHz
  • Modulation: AX-25 AFSK
  • Data Rate: 1200 bps

If you want to decode the data that you receive, go to the www.phonesat.org site and use the online decoder. The data is in ASCII85 format.

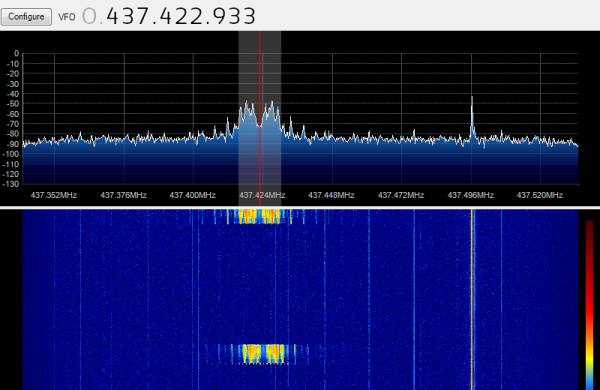

Phonesat Reception 22-04-2013 14:55UTC

Here is a part of the data that I received:

RAW data:

1:Fm KJ6KRW To CQ Via TELEM  [15:17:30R]
charging812,0,0,0

RAW data: KJ6KRW-1

1:Fm KJ6KRW-1 To CQ Via TCPIP  [15:23:46R]
ÿ63$uc!<<*"$NL/4+ohTHT)\ik!#!lBpHWgp'17u:G!hH6a1\BVks$0O$GVq0)aTSd!5_,h!5TfYzzzzzzzz!,,q[Ci:G.Ec5e;FD,5.@<Q.%ÿ

Decoded data: KJ6KRW-1

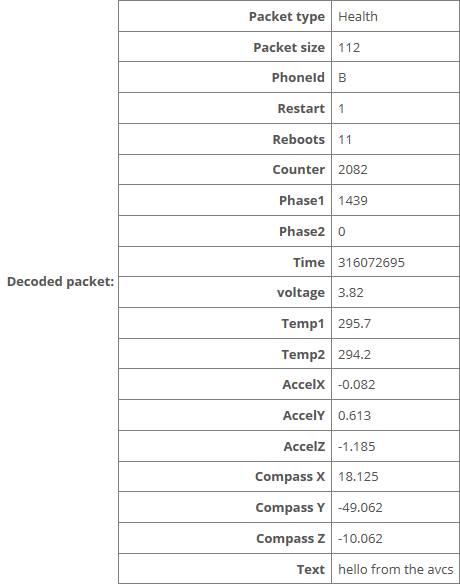

PhoneSat-KJ6KRW-1 22-04-2013 13:20UTC

RAW data: KJ6KRW-2

1:Fm KJ6KRW-2 To CQ Via TELEM  [15:18:42R]
ÿ5l^lb!<<*"#ljr1N;rq`/H>bN!#!j*83h7os$Ma_0ggo;0tp"AjZcJL_`j`(W^1Y*!(!(S!(&Gkzzzzzzzz!,,q[Ci:G.Ec5e;FD,5.@<Q.%ÿ

Decoded data: KJ6KRW-2

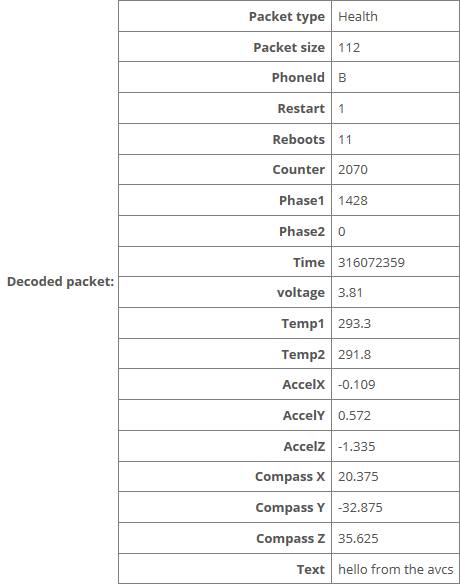

PhoneSat KJ6KRW-2 22-04-2013 13:20UTC

I want to congratulate the team with the successful launch and deployment of the Phonesat Satellites.
