ISS Amateur Radio CubeSats TLE

Kepler (TLE) data for the ISS/JAXA cubesat launch

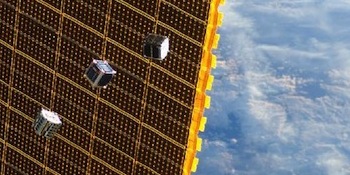

Cubesats leave ISSThe TLE of the five CubeSats recently launched from ISS are now available with the NORAD registration numbers 1998-067-CN, CP, CQ, CR, CS. 1998 ? Yes as NORAD considers they are parts of the ISS, the first module of which, Zarya, was launched on November 20th 1998 and got the NORAD registration number 1998-067-A.

(J-P/F5YG wrote on amsat-bb) Yesterday evening (Western Europe, around 2130 UTC), I noticed that FITSAT-1 was already about 4 mn before the ISS predictions as this one modified altitude (higher). With a max. elevation angle of 83 deg., we received the 437.250 MHz beacon loud and clear.

1998-067CN
1 38852U 98067CN  12283.00925092  .00041863  00000-0  69687-3 0    14
2 38852  51.6477 275.8145 0018909 135.8738 224.3701 15.51407904   603
1998-067CP
1 38853U 98067CO  12283.00919217  .00038394  00000-0  64119-3 0    17
2 38853  51.6480 275.8141 0014227 145.1302 215.0858 15.51445930   661
1998-067CQ
1 38854U 98067CP  12283.07336473  .00054398  00000-0  89879-3 0    14
2 38854  51.6473 275.4897 0014651 145.1372 215.0744 15.51582271   671
1998-067CR
1 38855U 98067CQ  12282.68697989  .00022010  00000-0  37095-3 0    12
2 38855  51.6485 277.4123 0014736 146.6828 213.5108 15.51493630   504
1998-067CS
1 38856U 98067CR  12283.00883489  .00069724  00000-0  11405-2 0    11
2 38856  51.6479 275.8106 0018733 136.2088 224.0323 15.51677880   557

We-Wish, RAIKO, FITSat-1, F1 and TechEdSat.

Update: October 10, 2012 from PA0DLO via Amsat-BB
PA0DLO wrote on Amsat-BB: FITSAT-1 is object 38853, 1998-067CP
DK3WN wrote on Amsat-BB: TechEdSat is object 38854, 1998-067CQ and We-Wish is object 38856, 1998-067CS

TLE data on October 11th, 2012 gives:

FITSAT-1
1 38853U 98067CP  12284.23299041  .00046535  00000-0  77118-3 0    41
2 38853  51.6484 269.7387 0014904 153.8209 206.3540 15.51562650   854
TechEdSat
1 38854U 98067CQ  12284.23265201  .00051303  00000-0  84491-3 0    33
2 38854  51.6480 269.7331 0014412 150.5036 209.6797 15.51702475   857
We-Wish
1 38856U 98067CS  12284.23242654  .00070920  00000-0  11526-2 0    58
2 38856  51.6470 269.7301 0018337 140.3610 219.8733 15.51859653   742

[PE0SAT Thanks DK3WN, J-P/F5YG, PA0DLO and amsat-bb for the above information]

ISS KIBO Cubesats Launched

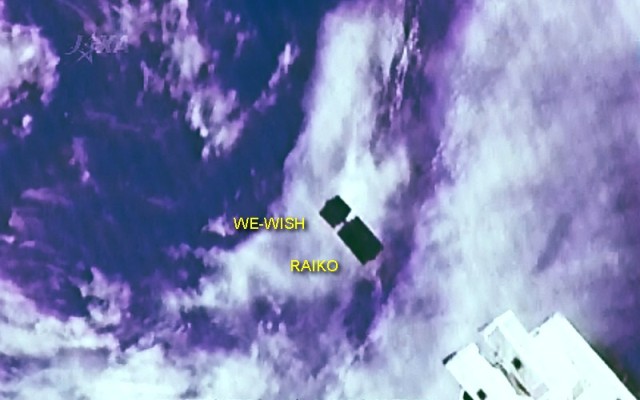

We-Wish, RAIKO launched.

We-Wish RAIKO

Satellite   Downlink           Beacon    Mode
---------   ----------------   -------   -----
WE WISH     437.505            437.505   SSTV, CW
RAIKO       2.2GHz, 13GHz      13GHz     38.4 - 500kbps
---------   ----------------   -------   ------------------

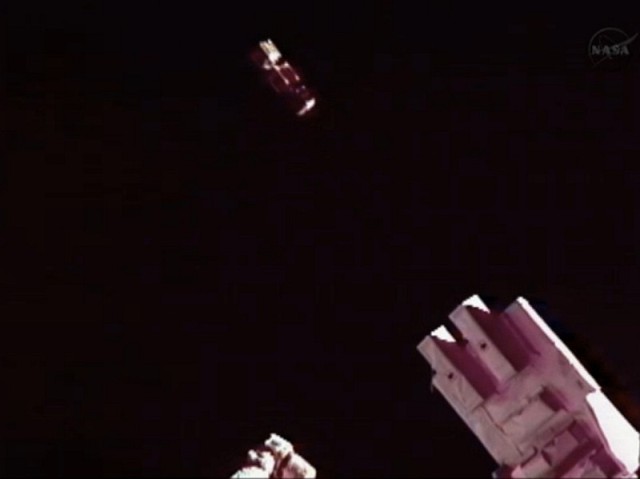

FITSat-1, F1 and TechEdSat launched.

FITSAT-1 F1 TechEdSat

Satellite   Downlink           Beacon    Mode
---------   ----------------   -------   -----
FITSAT-1    437.445, 5.84GHz   437.250   FM,CW
TechEdSat   437.465            437.465   CW
F-1         145.980            437.485   1200bps AFSK,FM,CW
---------   ----------------   -------   ------------------

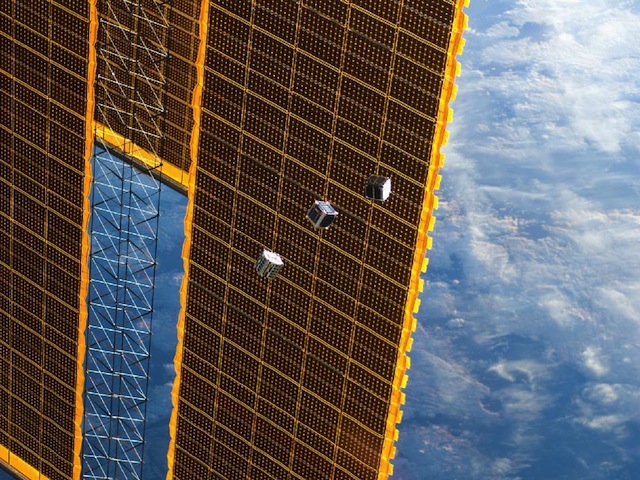

F1, FITSAT-1 and TechEdSat leaving ISS

F1 FITSAT-1 TechEdSat Leave ISS

[PE0SAT Thanks DK3WN for the above information]

ISS KIBO CubeSats

RAIKO, FITSAT-1, WE-WISH, TechEdSat, F-1

They will be loaded into the J-SSOD deployer on ISS KIBO with TechEdSat and F-1 by HTV-3 (Kounotori-3) on 21 July 2012.

These satellites will be deployed from KIBO by the robotic arm in September 2012.

RAIKO (Wakayama University)
100 x 100 x 200 mm 2U
http://www.astro.mech.tohoku.ac.jp/RAIKO/

FITSAT-1 LedsFITSAT-1 (Fukuoka Institute of Technology)
437.250MHz CW, 437.445MHz FM, 5840.00MHz High speed data
http://www.fit.ac.jp/~tanaka/fitsat.shtml

WE WISH (Meisei Electric Co., Ltd.)
437.505MHz SSTV, Telemetry, CW
https://sites.google.com/site/jq1ziijq1zij/

TechEdSat will be deployed from the International Space Station (ISS). It is a 1U CubeSat that will demonstrate Plug and Play power architecture and two way communication via the satellite phone/data networks Iridium and Orbcomm.

There will be a 437.465 MHz beacon transmitting 1 watt to 1/4 wave monopole. Commanding is via the commercial networks and there is a 2 week watchdog timer to stop the beacon in the event of no commands being received.

TechEdSat will be launched along with Raiko, FITSat-1, We-Wish and F-1 to the ISS aboard HTV-3, currently planned to launch July 21, 2012. From there, it will be deployed into Low Earth Orbit using the JAXA J-SSOD deployer, from the Japanese Experiment Module (JEM also known as Kibo). They will be deployed with the Kibo robotic arm planned for September, 2012.

FSpace-F1 ModelWiki-TechEdSat http://en.wikipedia.org/wiki/TechEdSat

F-1, Vietnam Student CubeSat

Downlink: 145.980MHz, 437.485MHz
Mode:     AFSK 1200bps, GMSK 9600bps, AX.25 KISS
Size:     10x10x10cm (1U cubesat)
Mass:     1kg
Payload:  C328 camera with 640x480 resolution

Main website: FSpace Laboratory

[PE0SAT Thanks JE9PEL, Mineo Wakita via amsat-bb for this information]
